Catena 35
Photo 1 en taille normale

    Le Catena 35 1 Le Catena 35 2 Le Catena 35 3 Le Catena 35 4

  Price :
1770.00 € (Suggested Price)

Product description :

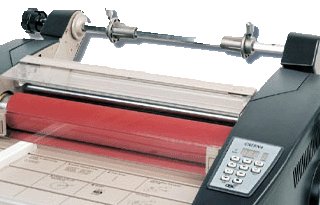

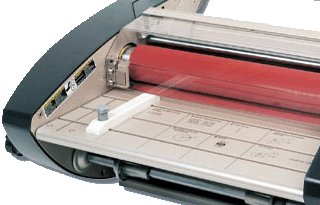

The RBS Catena 35 is one of the highest quality 12" roll laminators available on the market. The GBC Catena 35 is a 12" tabletop laminator capble of lamination, encapsulation, and mounting of digital output using films up to 10mil thick. This thermal film laminator is designed for safe, convenient, moderate laminating production in any office or small print shop environment. The GBC Catena 35 Roll Laminator is ideal for laminating Signs, Posters, Placemats, Event Graphics, POP Displays, Show Graphics, Presentations, Banners, Store Signage, Menus, Courtroom Graphics and more.

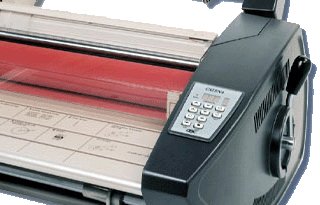

* LCD Display indicates temperature, speed and Ready/Wait condition
* Silicone rubber rollers ensure timely clean-up
* Interlocking feed tray and magnetic safety shield for safe operation
* Designed for thermal films up to 10 mil
* Roller gap adjustment handles mounting boards up to 3/16" (5 mm) thick
* Infrared heating coil distributes heat evenly and improves lamination quality
* 8 bit microprocessor temperature control guarantees fast response time
* Cooling fan ensures smooth, flat output
* Exclusive preset temperature and speed settings for each film thickness
* Fine tuning override controls for both temperature and speed for variations in paper conditions

Laminating Films :
- Polyester reel Mandrel of 25 mm. .
- Other Laminating and Assembly Films

Model GBC Catena 35
Maximum Doc Size 12"
Speed 1.5' - 5' per minute
Compatible Film 1.5 - 10mil
Core Diameter 1"
Dimensions 25"W x 13"W x 18"D
Weight 55 lbs
Warmup Time 10 minutes
Adjustable Speed Yes
Warranty 90 Day Manufacturer
Safety Approval UL, CE, CSA Listed, TUV Certified
Power Requirements 120V, 60Hz, 12 amps


Polyester reel Mandrel of 25 mm
Hot film of superior quality
Activation temperature 100-120°
Available in Glossy and Matt finishes
Pckg: Number of reels per pack.

Thickness (in microns) Size Finish Pckg Circa €/sqm Price in € Qty Cart
