2064 WF Professional Hot and Cold Laminators

Search :

contact RBS France

Newsletter :

2064 WF

Photo 1 en taille normale

Price :

18000.00 € (Suggested Price)

Product description :

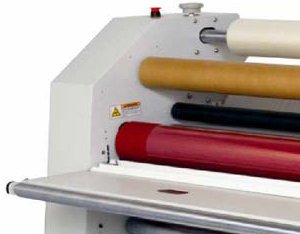

This mid-range laminator incorporates many features often found on more costly units. One outstanding feature is GBC's patented Advanced Electronic Safety System (AESS), that immediately stops the rollers whenever an obstruction is detected. The 2064WF can laminate and mount a variety of thermal and PSA films and materials up to 64" wide and 1" thick with speeds up to 15 fpm. The GBC 2064WF is ideal for mid-range production quantities nearing high-end production. It features a full control panel on the front and a motor drive control panel in the back for bi-directional operations. The front control panel displays all the pertinent information an operator needs for perfect product finishing including main roller pressure and gap settings. A footage counter keeps track of material used on a particular job. There is no need to let the main rollers cool down when thermally laminating from the front and board mounting from the rear. With of a multitude of unwind and rewinds shafts, the GBC 2064WF can also handle roll-to-roll applications. The movable foot pedal allows for hands-free operation when feeding prints or mounting boards.

The GBC 2064WF also includes GBC’s patented new Advanced Electrical Safety System is designed to protect the operator when running jobs from either side of the machine. The system consists of three components--fiber optic detection, dynamic braking, and a dual processor. The edge-to-edge fiber optic sensors provide full obstacle detection across the width of the roll to eliminate the possibility of failure due to blind spots. Once the sensing beam is broken, the dynamic braking system engages to immediately stop the rollers. The dual processor provides a backup to ensure reliability and maintain consistent performance.

Operation:

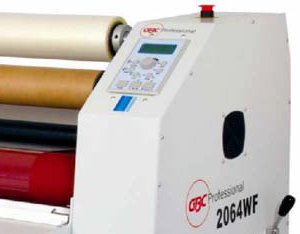

* Digital display for pressure and temperature eliminates guesswork.
* Bi-directional productivity allows hot and cold jobs to be run consecutively.
* Control settings are located on both the front and back sides of the unit.
* Repositionable foot pedal allows hands-free operation.
* Roll-to-roll applications benefit from an edge roller on the front feed table and a curved trailing edge on the rear feed table.
* Heat rollers and pull rollers are independently adjustable.
* With a mechanical roller adjustment, heat rollers are infinitely variable to 1".
* Pull rollers feature presets to accommodate common board and laminate gauges.
* Perfect for laminating ID badges, luggage tags, nametags and business cards
* High release silicone rollers allow for easy cleaning.
* Digital display indicates film footage to maximize roll usage.

Loading and Feeding:

* Film shafts swing out for easy loading and unloading.
* Light weight front table is removable for easy access to rollers. Rear table pivots down.
* Advanced Electrical Safety System at both roller nips protects fingers from harm while feeding.
* Unique pressure plate, available in the front and the back, flattens leading edge of curled prints for improved feeding.
* 1 Year Manufacturer Warranty on parts, 90 days labor

Finishing:

* Intelligent controller monitors and maintains consistent temperature for optimum quality.
* Adjustable high-quality clutch ensures consistently flat output.
* Two in-line edge slitters save trimming time.
* Channeled air-cooling system and large chill idler roller eliminate waves on thermal output.
