IPF 8100
Photo 1 en taille normale

    Le IPF 8100 1 Le IPF 8100 2 Le IPF 8100 3 Le IPF 8100 4

  Price :
6800.00 € (Suggested Price)

Product description :

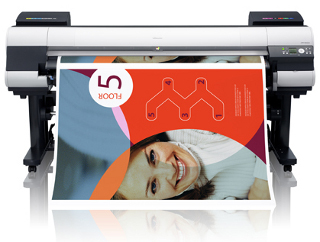

The Canon imagePROGRAF iPF8100 44" printer takes the next step in redefining large format printing. The iPF8100 is the ideal solution for any color professional looking for impressive, full-bleed color output, strength in paper handling and exceptional speed in output. Advanced professional features such as automatic clogged nozzle detection and compensation for reliability, an 80GB hard drive, 330ml or 700ml ink tank for versatility, a large backlit LCD panel for ease of use, and ink usage tracking for accountability are all part of the iPF8100 to satisfy every color professional's large format printing needs. The 12-color pigment ink system with LUCIA inks offers excellent color fastness and stability with a remarkably wide color gamut. The ink formulation for Black, Matte Black, Gray and Photo Gray reduces bronzing while providing stronger ink adhesion to the print media, resulting in better scratch resistance without any additional protection. The Canon L-COA processor, which is dedicated to the imagePROGRAF, is designed to optimize the best quality output at the highest possible speeds. Vivid, breathtaking, long-lasting prints are achieved by combining these advanced technological Canon achievements.

The many built-in features that make this printer easy to use and maintain are the driving force behind this powerful printer. With the printer's unique ability to print in unprecedented quality and speed along with the multiple media handling options and software suite, the iPF8100 is the ideal solution for all types of professionals. The iPF8100 is designed for reliability, simplicity, productivity and above all...quality.
12-Color Pigment Ink System - LUCIA inks
spacer
The iPF8100 printer's ink set is comprised of 12 colors: four standard process colors with Photo Cyan and Photo Magenta; plus Red, Green, and Blue; Matte Black, Gray, and Photo Gray. This unique combination creates a broad color pallet and delivers exceptional print results. The iPF8100 printer's LUCIA ink is specially formulated to reduce graininess and bronzing and resist scratching and fading. Black, Matte Black, Gray and Photo Gray optimize black ink density for exceptional monochrome photo-quality output. Based on the type of media being used, the iPF8100 printer automatically chooses the correct black ink to achieve the best print results.
Built in 80GB Hard Drive
spacer
The hard drive storage space within the iPF8100 increases productivity by relieving workload from the host PC while providing a large capacity for print job data storage and retrieval. This 80GB hard drive enables job data to be stored in protected mail boxes for easy access and printing.
Built-in Calibration
spacer
The iPF8100 printer is equipped with the ability to recalibrate itself to the original optimal factory settings and apply any necessary adjustments across all the printer's media types. This creates a stable, predictable printing platform on which superior results can be consistently achieved. The system has built-in calibration sensors that accurately detect variation in print heads and measures the density levels of the inks and makes necessary adjustments to return calibration to the original factory settings.
Dual Print Head System
spacer
Engineered for speed and advanced image production, the iPF8100 boasts Canon's dual print head system to lay down ink with unprecedented speed and accuracy. Unlike conventional printers with a single print head, the iPF8100 uses two high-precision, high-density print heads with a total of 30,720 nozzles. It lays down precise 4 picoliter-size ink droplets to produce sharp detail and excellent image quality. The superfine 4 picoliter-size droplets produce delicate color gradations and high-definition. The twin lines of nozzles for each color on the print heads enable the iPF8100 to minimize the number of printing passes and still maintain print quality. The two 1-inch iPF series print heads each boast 6 colors with 2,560 nozzles per color. That's a total of 30,720 nozzles. More nozzles mean more ink is ejected with every pass of the print head, no matter what print mode or media. It gives new meaning to "high-speed output."
L-COA Controller - Print Controller
spacer
Like other powerful Canon systems, the iIPF8100 is built around the innovative L-COA (Large Format Pprinter Common Architecture) processor. When it comes to speed and accuracy, the L-COA processor is in a league of its own. By intelligently processing print data and directing the high- precision, high-density print heads to deposit ink, the system ensures image clarity and color accuracy, even for complex graphics and color-rich photographic images. Combined with Canon's dual print head design and the most ink nozzles per color in the industry, the L-COA controller helps achieve phenomenal print speeds.



Features
Printer Type
12-Color 44-inch Printer
Number of Nozzles
Total: 30,720
All colors: 2,560 nozzles each
Nozzle Pitch
1,200 dpi

Non-firing nozzle detection and compensation
Print Resolution (Up to)
Color: 2,400 x 1,200 dpi (Max)
OS Compatibility
Windows®(2000/XP/Vista 32/64bit)
MAC(OS9,OSX)1
Standard Interface
USB 2.0 High-Speed
10/100 Base-T/TX
Optional: IEEE 1394 (Firewire®)
Ink Droplet Size
4 picoliter
Ink Capacity
330ml per color (Optional 700ml)
Ink Types
LUCIA ink (Pigment-based)
Color Set
Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Red, Green. Blue, Gray, Photo Gray
Buffer/Ram
384 MB
Hard Drive
80GB
Media Width
Cut Sheet: 8" - 44"
Roll: 10" - 44"
Media Thickness
Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)
Roll: 0.07 - 0.8mm (2.8 - 31.4mil)
Maximum Roll Print Length
59 Feet (18 meters)2
Maximum Media Roll Diameter
5.9" (150mm)
Borderless Printing Width (Roll Media Only)
515mm (JIS B2), 1, 030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 16", 24", 36", 42"
Paper-Feed Method
Roll Feed: one Roll, front output
Front Loading Manual Feed: One sheet, front output
Languages
GARO (Canon Proprietary)
Noise Level (Approx.)
Operation: 50 dB (A) or less
Standby: 35dB (A) or less
Acoustic Power: 6.6 Bels
Physical Dimensions
45" (H) x 74.5" (W) x 38.4" (D)
Weight
Approximately 313 lbs. with stand
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 190W or less
Standby 6W or less
Power Off: 1W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59° - 86° F (15° - 30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-03), Maintenance Cartridge (MC-08), Durable Rotary Blade (CT-06)
Ink Tanks PFI-301 (330 ml) / PFI-701 (700 ml): C, M, Y, PC, PM, R, G, B
PFI-302 (330 ml) / PFI-702 (700 ml): BK, MBK, GY, PGY
Software Included
Canon Printer Driver, Print Plug-in for Adobe Photoshop, Print Plug-in for Digital Photo Professional, Digital Photo Front-Access, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function)
