IPF 755
Photo 1 en taille normale

    Le IPF 755 1 Le IPF 755 2 Le IPF 755 3 Le IPF 755 4

  Price :
4965.00 € (Suggested Price)

Product description :
Built for architects, engineers, GIS professionals, and other high-end technical documents users, the 36" imagePROGRAF iPF755 large format printer is a powerful print solution designed to meet the demands of medium to large workgroups. With incredible line accuracy, an 80GB hard drive, and on-board support for HP-GL/2 and HP-RTL files, the iPF755 is an ideal solution for any professional with a need for printing complex full-color renderings, CAD drawings, GIS maps and other large-format graphics quickly, effortlessly, and with remarkable detail.

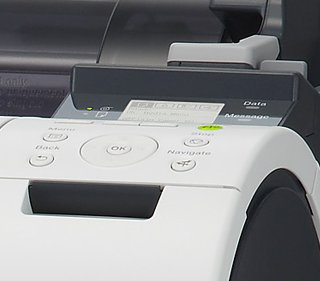

A totally revamped, environmentally-conscious design with fully front-accessible operations allows for outstanding ease-of-use and flush wall installation in any environment. From loading paper to navigating through an intuitive control panel, the iPF755 simplifies large format printing. And with accounting functionality, a sub-ink tank system, and Gigabit Ethernet support, this printer achieves exceptionally high measures of productivity. Combined with its impressive speed, precision and high quality output, the imagePROGRAF iPF755 is the premier printing solution for the technical documents market.
High-Speed Printing: L-COA processor
spacer

Output a D-size (24"x36") drawing in approximately 28 seconds*. When you need to keep projects moving forward and meet deadlines, this kind of speed is critical. Powering these incredible print speeds is Canon's L-COA (Large Format Printer COmmon Architecture) print controller, driving the imagePROGRAF print engine to lay down ink with exceptional speed and precision. This unique, high-speed processor enables the print system to process large volumes of data while optimizing output of complex high-color GIS images and architectural renderings for maximum readability and color accuracy.
Space-saving, Environmentally-conscious Design
spacer

This printer was designed to be space-saving and environmentally conscious. This printer carries a small footprint with fully front-accessible operation for flush wall installation that fits into almost any environment. Also, loading roll media is simple with built in loading guide rails and an automatic roll feeder. Made with less plastic, and reduced CO2 emissions, this model has earned ENERGY STAR qualification, and draws only 140 watts of power during use.

Productivity: Print Longer without Interruption
spacer

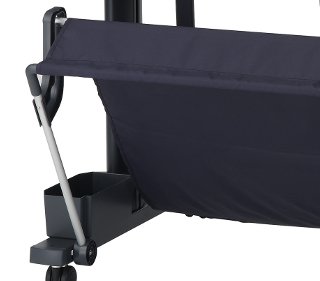

Canon's unique sub-ink tank system means you can replace ink on-the-fly without stopping the printer. For long print runs, a high-capacity media basket comes standard with this printer. And its highly durable self-propelled dual rotary cutter allows for even faster printing of multi-page jobs.
Precision Printing: High-Density PF-04 Print Head
spacer

Engineered for speed and advanced image production, this printer boasts Canon's latest print-head technology to lay down ink with unprecedented speed and accuracy. The new PF-04 print head incorporates a new nozzle shape to reduce satellite ink, producing cleaner lines and text, and minimizing mist. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 4 picoliter-size ink droplets that produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output with fine lines that are accurate to ±0.10% and as thin as 0.02mm.
80GB Hard Drive
spacer

A built-in 80GB hard drive within the printer increases productivity by relieving workload from the host PC, while providing a large capacity for print job data storage and retrieval. This 80GB hard drive enables job data to be stored in protected mailboxes for easy access via web browser or at the printer for job re-printing. The embedded hard disk is ideal for medium to large workgroups to share a printer efficiently with multiple users, offering ample job storage space.






Features
Printer Type
5-Color 36-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1,200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2,400 x 1,200 dpi (Max)
OS Compatibility
Windows® (2000/XP/Vista 32/64bit)
Mac (OS10)1
Standard Interface
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size
4 picoliter
Ink Capacity
130ml per color2
Ink Types
Dye/Pigment Reactive Ink
Color Set
Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black (two channels)
Buffer/Ram
256 MB
Hard Drive
80 GB
Media Width
Cut Sheet - 8" - 36" (203.2mm - 914mm)
Roll Feed - 10" - 36" (254mm - 914mm)
Media Thickness
0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length
Roll Feed - 59' (18 meters)3
Cut Sheet - 63" (1.6 meters)
Maximum Media Roll Diameter
5.9" (150mm)
Borderless Printing Width (Roll Media Only)
10", 14", 17", 24" B2 (20.28"/515 mm), A1 (23.38"/594mm), A0 (33.11"841mm), 36"
Paper-Feed Method
Roll Feed: One Roll, Top-loading, Front output
Cut Sheet:: One sheet, Top loading, Front output
Languages
Language: GARO (Canon Proprietary), HP-GL/2, HP-RTL
Noise Level (Approx.)
Operation: 50 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.6 Bels
Physical Dimensions
41.8" (H) x 51.3" (W) x 34.3" (D)
Weight
Approximately 139 lbs. with stand
Power Source
AC-100-120V (50-60Hz)
Power Consumption
Maximum: 140W or less
Standby 5W or less
Power Off: 1W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-04)
Maintenance Cartridge (MC-10)
Ink Tanks (PFI-102: C, Y, K, MBK), (PFI-104:M)
Software Included
Canon Printer Driver, Digital Photo Front-Access, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), HDI Driver for AutoCAD4, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only)
