Onglematic 3

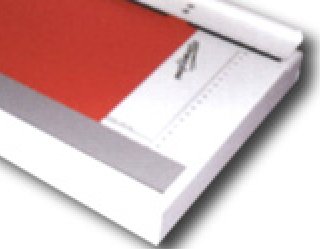

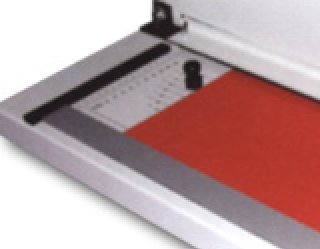

Photo 1 en taille normale

    Le Onglematic 3 1 Le Onglematic 3 2 Le Onglematic 3 3

  Price :
560.00 €
704.93 US$
469.7 £
(Suggested Price)

Product description :
The user moves the positioning stop by hand from one hole to the other along the line which indicates the number of requested tab.
The length of each tab is calculated to be proportionate and equally shared on the sheet.

Manual cutting by using simple pressure on the handle
Length of guillotine cutting : 320 mm
Can cut 10-15 sheets of 80 g. paper at once (or equivalent in 180 g, 250 g, 500 g, cardboard & polypropylene)
Width of the documents from 70 mm
Magnetic lateral stop and millimetre rule.
Tab depth up to 18 mm.
220 V mains supply for the Guillotine-Onglématic 5.
Available for the US market upon request. Paper size : 8,5 " (216 mm) and 11" (279 mm) and 110 V.

Warning : the different cutting shapes are not interchangeable on these models. The tab shape must be chosen upon order.





Options
Standard (15° angle) Up to 18 mm
90° angle option Up to 18 mm
Round corner option Up to 18 mm
Inclined double round corner option 12,7 or 15 mm
Inclined round corner option Up to 18 mm


Features
Tab number : 2 to 12
Format (sheet size) : 297 mm
Positioning : Manual
Number of sheets of 80 g. : 10-15
Size : 30 x 58 x 30 cm
Weight : 6kg
