Perfostar ED
Photo 1 en taille normale

    Le Perfostar ED 1 Le Perfostar ED 2 Le Perfostar ED 3 Le Perfostar ED 4

  Price :
10450.00 € (Suggested Price)

Product description :
for permanent and indelible marking, dating or
labelling of multiple documents or labels in one
single operation or for numbering sets of forms,
receipt blocks, passports etc.
The machines from this series are highly recommended,
if you want the perforation to consist of a frequently
changing combination of numbers and/or
letters or if there is a need for markings of variable
length or design. They are individually manufactured
according to your request.
At a character height of 7 or 8.5 mm, up to 16
characters in line can be adjusted quickly and comfortably
via the wheels' unit.. At a character height
of 5.5 or 6.5 mm even up to 20 characters, whereas
at 10 mm height still 14 characters are possible.
The wheels can include numbers, letters, or symbols,
and in most cases also an additional blank space
which excludes unused digits from perforation,
inserting a space instead.
You can perforate up to 3 lines in a column in one
single operation: A fixed text can be installed above
or below, as well as in front of or behind the wheels.
Additionally, a date or a changeable text can be fixed
above as well as below the wheels' unit. Both lines
can be altered quickly via easily exchangeable slides.

In their standard configuration, these machines are
manufactured with up to 6 number wheels and a
character height of 5.5, 6.5, 7, 8.5 or 10 mm.
By standard, they are delivered with one each
adjustable side and rear gauge.
The desired imprint can be placed up to 105 mm
from the upper or lower edge of the sheet –
measured from the edge of the form to the center
of the perforation.
Please note
When placing your order, please provide information
to whether the desired imprint is to appear in the
upper or lower part of the forms. For example, if the
lower edge of the sheet is being perforated, both
die unit and wheels are manufactured upside down
and in mirror face, in order for the perforation to
appear legible.

Our robust and efficient electric machines are equipped
with a modern NC motor. In case a bigger stack of
paper is inserted which does not correspond to the
capacity of the specified machine, the machine will
automatically return to its original position. Thus, the
paper to be perforated is prevented from getting stuck
in the machine.
In one perforation process, you can mark 25 – 30 sheets
of 70 g paper with a combination of up to 10 letters or
numbers with a character height of 7, 8.5 or 10 mm.
Even with 20 digits of the same character heights, the
capacity of these machines is still at 15 – 20 sheets of
70 g paper.

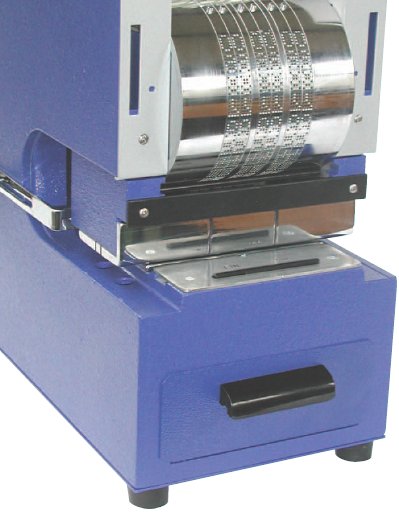

Perforation is released by pressing the push button on
the side of the machine.

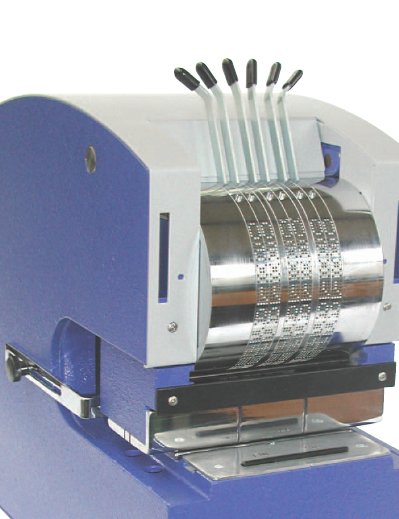

with 6 wheels (each with numbers 0 – 9 and blank)
in the standard version and a fixed point or a space
after digit 2 or 4. There are adjusting levers attached
to these wheels.






Features
Drive Electric
Motor AC 230 V special voltages possible
Standard version: 6 wheels with numbers
Standard character heights: 5,5, 6,5, 7, 8,5 or 10 mm
Maximum capacity: 25 -30 sheets 70 g paper
Insertion depth, from paper edge to center of perforation: approx. 105 mm
Max. width of perforation: 112 mm
Weight net / gross: 32 kg / 34 kg
Packaging: carton
Packaging dimensions: 59 x 39 x 27 cm
