Aerocut
Photo 1 en taille normale

    Le Aerocut 1 Le Aerocut 2 Le Aerocut 3 Le Aerocut 4


  Price :
23750.00 € instead of 23900.00 € (Suggested Price)

Product description :

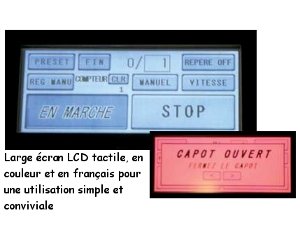

New finishing solution on both digital and offset field is offered by Uchida AeroCut Auto Cutter and Creaser. All jobs, cutting, creasing and perforating are operated with touch screen. This enables time saving, no complicate setting and specific acknowledgement required. Japanese high quality cutter, slitter and creaser can fulfill finishing result for all kinds of cards.

* • 6 Rotary Slitting Knives
* • Cross Cut Knife

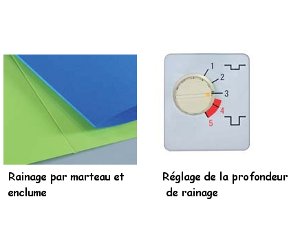

* • Matrix Creasing with adjustable depth
* • Perforation unit with twin perf wheels
* • Reg mark reader to eliminate print wandering
* • Program memory for 80 jobs
* • Feeds over 350gsm






Features
Types Standalone type

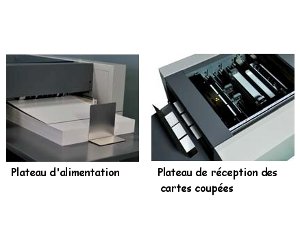

In-feed system Upper belt suction feed
Processing speed Business card (21 pcs from A3 sheet) - 6 sheets/minute
Leaflets (center crease) - 8 sheets/minute
Card (A5 x 4 from SRA3) - 7 sheets/minute
Cutting (Length) Guillotine (Angle to feed direction)
Cutting (Width) Slitter Roller (Along to feed direction)
Auto paper size detection 350mm (W) x 500mm (L), SRA3, A3, A4 and A5
Position setting Fully automatic
Maximum paper size 365mm (W) x 520mm (L)
Minimum paper size 210mm (W) x 210mm (L)
Maximum paper weight 350g/m2
Minimum paper weight 120g/m2
Paper type Offset, Coated, Glossy, UV coated, Laminated paper etc.
Maximum Loading capacity 60mm
Feed out Receiving tray
Minimum cut size 55mm (W) x 50mm (L)
Maximum cut size 210mm x 297mm (A4 x 2 sheets)
Pre-programmed job pattern 78 kinds
Memory capacity Up to 50 kinds
Perforating unit Equipped as standard (two blades standard)
Creasing unit Equipped as standard
Net weight 150 kg
Dimensions Unit : 877mm (W) x 714mm (D) x 1,037mm (H)
In use : 1,720mm (W) x 714mm (D) x 1,500mm (H)
Power supply 100 VAC - 240VAC / 50-60Hz
