Sirocco 1600
Photo 1 en taille normale

    Le Sirocco 1600 1 Le Sirocco 1600 2 Le Sirocco 1600 3 Le Sirocco 1600 4

  Price :
10800.00 € (Suggested Price)

Product description :

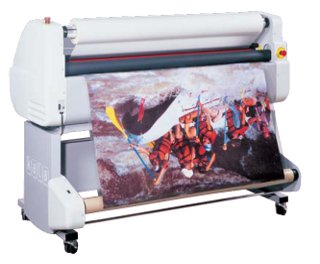

Sirocco 1600 is a mid size laminator that covers the most common finishing requirements with high quality results.

This compact, economic and ergonomic system is ideal to satisfy medium sized production requirements.

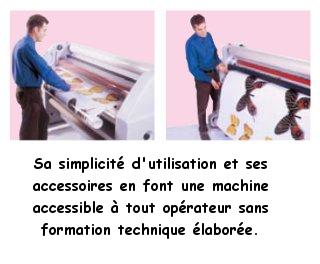

This user friendly system can be operate even by operators without technical skills.

Pressure sensitive films:
- Lamination, encapsulation, adhesive setting, mounting.

Thermal films:
- Lamination & encapsulation with films up to 250 microns thickness
- Encapsulation with opaque backing substrates
- Use of different type of film (finishing or texture) on top & bottom.


Options
- Electrical rewinding system to handle demanding job runs.

Supplies
- Contact Us

Features
- Max. working width: 1600 mm
- Width of the roller: 1674 mm
- Diameter of the heating rollers: 78 mm
- Max. thickness of print + board 25 mm
- Adjustment and display of the roller temperature: yes from 40°C to 160°C
- Max. thickness of the film: 250 microns/side
- Digital display of the roller pressure: yes
- Upper & lower winding and unwinding spindles: yes
- Nb. of spindles delivered with the machine: 4
- Max. speed meters/min: 3
- Reverse operation: yes
- Motor pedal control: yes
- Emergency stop button: 2
- Stand mounted on self-locking castors: yes
- Power of the motor (W): 100
- Heating power (W): 3400
- Voltage 230V / 50-60Hz single phase
- Amperes 16 amps
- Size of the machine: L194 x D76 x H137 cm
- Weight of the machine(kg): 287
- Size of the shipping crate (cm) L225 x D105 x H100
- Shipping weight (kg): 335
- Made in France, EC - Certification
