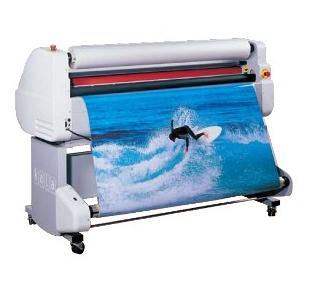

Atlantic 1600
Photo 1 en taille normale

    Le Atlantic 1600 1 Le Atlantic 1600 2 Le Atlantic 1600 3 Le Atlantic 1600 4

  Price :
12990.00 € (Suggested Price)

Product description :
Atlantic's heating system electronically controlled by an infra red sensor facilitates different temperature settings for the top and bottom rollers in order to offer all finishing solutions up to 1.60 meter width.

Atlantic 1600 Laminting systems are ideal for professionals who aim to offer the broadest range of lamination services and to get maximum benefit out of their investment.

Pressure sensitive films:
- Lamination, encapsulation, adhesive setting and mounting

Thermal films:
- Encapsulation with lamination films up to 125 microns thickness
- Encapsulation with opaque backing substrates
- Use of different film on top and bottom (thickness, texture)
- Use of pressure sensitive and thermal film in one pass.

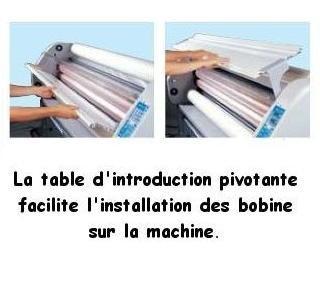

Pivoting feeding tray facilitates easy loading of film rolls. Connected to a safety device installed in the machine, it provides maximum security to user while loading.


Options
- Electrical rewinding system for handling large jobs.

Supplies
- Contact Us

Features
- Max. working width: 1600 mm
- Length of the roller: 1674 mm
- Diameter of the heating rollers: 106 mm
- Max. thickness of print + board: 25 mm
- Independent adjustment and display of the roller temperature: yes, from 20°C to 140°C
- Max. thickness of the film: 320 microns/side
- Digital display of the roller pressure: yes
- Upper and lower winding and unwinding spindles: yes
- Nb. of spindles delivered with the machine: 4
- Max. speed meters/min: 3
- Reverse operation: yes
- Motor pedal control: yes
- Emergency stop button: 2
- Stand mounted on self-locking castors: yes
- Power of the motor (W): 100
- Heating power (W): 3400
- Voltage 230V / 50-60Hz single phase
- Amperes 16 amps
- Size of the machine on stand: L194 x D76 x H137 cm
- Weight of the machine(kg): 324
- Size of the shipping crate (cm) L225 x D105 x H100
- Shipping weight (kg): 372
- Made in France, EC - Certification
