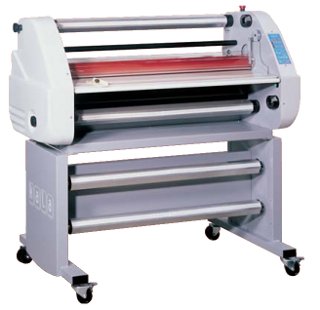

Atlantic 1080
Photo 1 en taille normale

    Le Atlantic 1080 1 Le Atlantic 1080 2 Le Atlantic 1080 3 Le Atlantic 1080 4

  Price :
8300.00 € (Suggested Price)

Product description :
Atlantic 1080 Laminating systems are ideal for printing and finishing companies who want to do quality, mass production. Space saver, Atlantic 1080 completes perfectly the 91 and 112 wide printers.

This user friendly, easy to use machine can handle extremely demanding finishing requirement of images up to a width of 108 cm with professional accuracy.

Pressure sensitive films:
- Lamination, encapsulation, adhesive setting and mounting

Thermal films:
- Encapsulation with lamination films up to 125 microns thickness
- Encapsulation with opaque backing substrates
- Use of different film on top and bottom (thickness, texture)
- Use of pressure sensitive and thermal film in one pass.

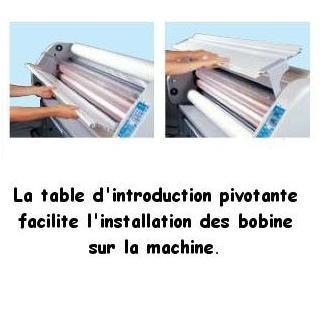

Pivoting feeding tray facilitates easy loading of film rolls. Connected to a safety device installed in the machine, it provides maximum security to user while loading.





Options
- Electrical print rewinding system

Supplies
- Contact Us

Features
- Max. working width: 1080 mm
- Length of the roller: 1100 mm
- Diameter of the heating rollers: 78 mm
- Max. thickness of print + board: 25 mm
- Adjustment and digital display of the heating rollers temperature: yes from 20°C to 140°C
- Max. thickness of the film: 250 microns/side
- Digital display of the roller pressure: yes
- Upper and lower winding and unwinding spindles: yes
- Nb. of spindles delivered with the machine: 4
- Max. speed meters/min: 3
- Reverse operation: yes
- Motor pedal control: yes
- Emergency stop button: 2
- Stand mounted on self-locking castors: yes
- Power of the motor (W): 100
- Heating power (W): 3000
- Voltage 230V / 50-60Hz single phase
- Amperes 14 amps
- Size of the machine on stand: L142 x D76 x H137 cm
- Weight of the machine(kg): 184
- Size of the shipping crate (cm) L180 x D105 x H100
- Shipping weight (kg): 227
- Made in France, EC - Certification
