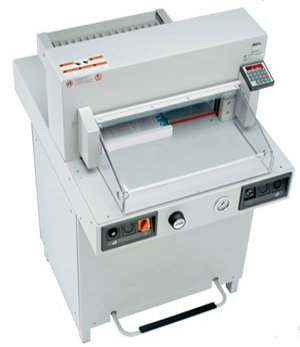

Ideal 5221 05 EP Digicut
Photo 1 en taille normale

    Le Ideal 5221 05 EP Digicut 1 Le Ideal 5221 05 EP Digicut 2 Le Ideal 5221 05 EP Digicut 3 Le Ideal 5221 05 EP Digicut 4

  Price :
8715.00 € (Suggested Price)

Product description :
PROGRAMMABLE POWER GUILLOTINE WITH HYDRAULIC CLAMP – PERFECT FOR TRIMMING DIGITAL PRINT JOBS

electro-mechanical blade drive, hydraulic clamp drive, clamping pressure infinitely adjustable (min. 200 daN / 440 lbs. – max. 1100 daN / 2420 lbs.) with optical indicator (pressure gauge), foot pedal for pre-clamping plus cutting line indicator, false clamp plate for delicate work, power backgauge with fully programmable ”EP“ backgauge control module, electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast), optical cutting line with bright and durable LEDs, clamp guided on both sides for evenly distributed clamping pressure, spindle guided backgauge for precise positioning, adjustable backgauge with narrow separations (32 mm) and plastic gliders, two side lays on rear table, solid steel blade carrier and adjustable blade guides, high-quality blade made from “Solingen steel”, set of side tables (left and right) available at an extra cost

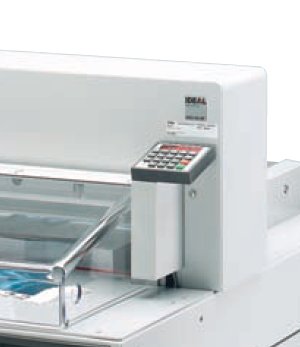

BACKGAUGE CONTROL MODULE:
digital display for measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch); 10-button key pad for presetting of measurement; memory key for repeat cuts; 9 programs with 9 steps in each program can be stored (up to 9 repeat cuts can be integrated into a program as one single program step); programmable EJECT function – for pushing out the paper; setting of program steps via “Start” button; “SET” function key for reference measurement; two programmable keys for quick setting of frequently needed measurements; self-diagnosis system with error indication on display

“SCS“-Safety package (Safety Cutting System):

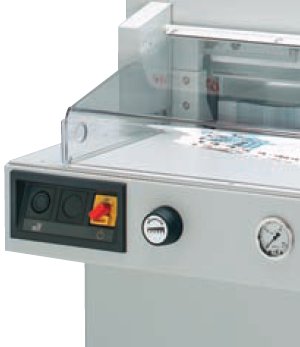

hinged, electronically controlled safety guards in the working area, transparent safety cover on the rear table, main switch and safety lock with key, electronically controlled true two-hand operation, patented IDEAL safety drive, automatic blade and clamp return from every position, 24 volt controls (low voltage), disc brake for instant blade stop, blade changing device with covered cutting edge, blade depth adjustment from the outside of the machine.
Safety tested by major independent safety laboratories and complies with the European “CE” standards.


Supplies
- Blades for Guillotine
- Slides for guillotine

Features
* 520mm cutting length
* 80mm cutting height
* 22mm narrow cut
* 520mm table depth
* all metal construction
* automatic clamping system
* Dimensions (WxDxH): 1085x855x1265mm
